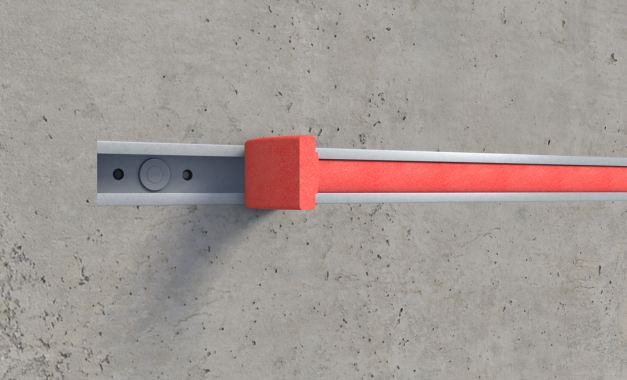

A continuous anchor channel embedded into the concrete wall, providing adjustability and enabling installation of masonry support brackets.

Cast-in Channel

Home
Fixings & Accessories
Cast-in Channel

< Back

IG Masonry Support's Cast-in Channels are used for fixing masonry support systems to concrete structures.

IG Masonry Support’s Cast-in Channels are designed for securely fixing masonry support systems to concrete structures.

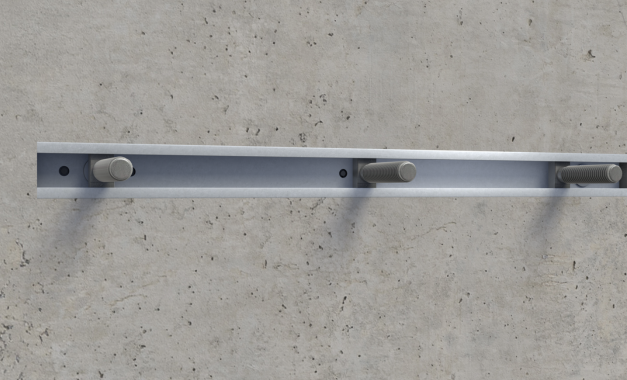

Each Cast-in Channel (CIC) consists of a 3050mm rolled anchor channel with swaged studs, M12 T-head bolts, and lock nuts. Supplied in standard 3050mm lengths, the channels can support line loads of up to 27kN/m (unfactored), meeting the requirements of most masonry support applications.

The T-head bolts and lock nuts ensure a secure connection between the masonry support system and the anchor channel, while allowing for precise lateral adjustment.

All components are manufactured from 304 Austenitic Stainless Steel (1.4301), with 316 Stainless Steel (1.4401) available upon request.

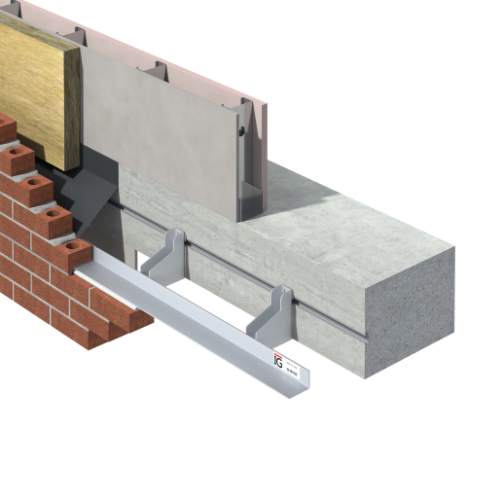

Welded Masonry Support_Fixing to Cast-in Channel

Product Design and Testing

In-house design
IG Masonry Support has a skilled team of over 40 civil and structural engineers who are competent in specifying the correct Cast-in Channel for your project.

European Technical Approval (ETA)
The anchor channels have been tested in IFBT Leipzig in accordance to the EOTA guidelines and were awarded an ETA certificate from DIBT (German Institute of Building Technology) in 2024.

The ETA approval includes thorough specifications on internal and third party quality control of on-going production. Therefore quality assurance is in place to be certain that the quality of the channels
correspond with the samples tested during the approval procedure.

This approval is valid on all states of Europe. An ETA catalogue is available which includes the dimensioning of the anchor channels in accordance with the new European standards series CEN/TS 1992-4-3 “Design of fastenings for use in concrete – Anchor Channels.”

Eurocodes
The channels are designed to Eurocode and dimensioned according to CEN/TS 1992-4 standard in combination with the approved loadings certified in the ETA approval.

Product Range

Cast-in Channels are available in a range of sizes that will support line loads up to 27kN/m (unfactored). This will cover most masonry support applications.

Supplied in 3050mm lengths the channels are made from stainless steel (A2) 1.4301.

Minimum Edge Distances and Thickness

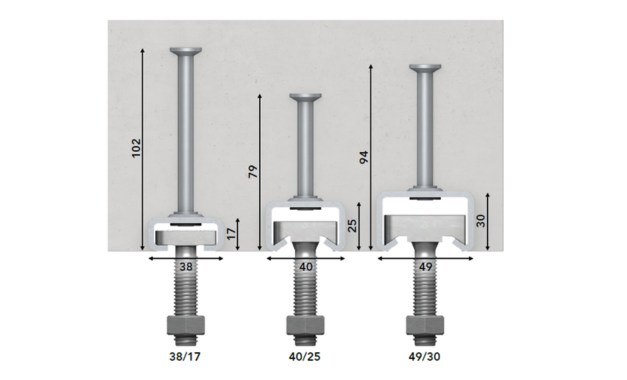

Cast-In Channel Type		38/17-167	40/25	49/30
Min. Spacing of Bolts (mm)	Ss, min	150mm	150mm	150mm
Min. Anchor Depth (mm)	min hef	102mm	79mm	94mm
Min. Edge Distance (mm)	Cmin	50mm	50mm	75mm
Min. Slab Thickness (mm)	Slabmin	100mm*	100mm*	150mm*
Min. Stud Distance (mm)	-	167mm	250mm	250mm
*Reduced Loading

Cast-in Channels are manufactured from 304/304L Austenitic Stainless Steel (1.4301/1.4307) or 316/316L (1.4401/1.4404) on request. Stainless steel is considered A1 fire-rated without the need for testing in accordance with the guidance of the European Commission Paper 96/603/EC as referenced in BS EN 13501-1:2018.

Technical Data Sheet

Find out all technical data on IG Masonry Support’s Cast-in Channel in our comprehensive Technical Data Sheet.

Download Technical Data Sheet

Installation

Correct installation is essential for the success of your project. Therefore, we have made every effort to help you by creating an easy-to-use installation guide for Cast-in Channel.

Cast-in Channel Installation Guide (3.1mb)

Download

Should you have any technical questions prior to or during installation, please call 01283 200157 for friendly straightforward advice.

Specify Cast-in Channel

Use the National Building Specification’s (NBS) platform to find, select, and incorporate our Cast-in Channel product information into your next construction project’s specification.

Specify Cast-In Channel >

Discuss Your Project

Contact our technical design team to collaborate or enquire about a project.

Related Products

Projects using these products

The Astley, Port Street

Manchester, England

Discover More

Brick Slip Lintels Cast-in Channel Welded Masonry Support

Key Benefits of Cast-in Channel

Designed in accordance with CEN/TS 1992-4-3
CE marked product
Facilitates users working with low edge distances
Load resistances can be improved by using higher concrete strength class on loading
Shear and tensile resistance in concrete can be improved with additional reinforcement
