B.O.S.S. A1

B.O.S.S. A1 is an A1 fire rated, stainless steel, prefabricated brick slip soffit system. Designed to be quickly and easily bolted to IG’s Welded Masonry Support (WMS) or steel lintels, the units enable deep reveals, soffits and flying beams on masonry façades.

B.O.S.S. A1 - A1 fire rated and mechanically fixed brick slip solution.

< Back

Overview

Technical Data

Installation

Specification

Resources

B.O.S.S. A1 is an A1 fire rated, carbon neutral, prefabricated brick slip soffit system designed to be quickly and easily bolted to IG’s Welded Masonry Support (WMS) and steel lintels to create deep reveals, soffits and flying beams on masonry façades.

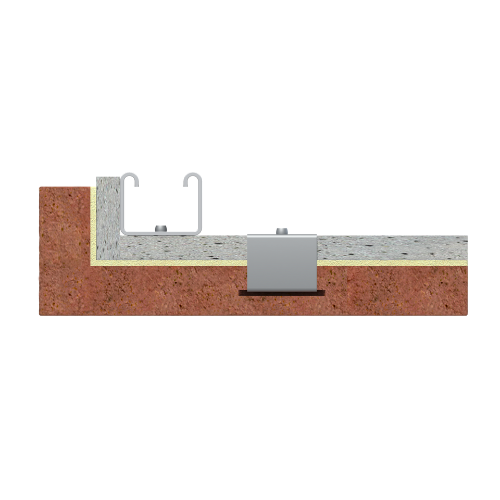

Manufactured offsite, the prefabricated components are delivered to site complete with brick slips adhesively bonded and mechanically secured to the brick carrier unit. The BBA-certified components are designed to be installed and integrate seamlessly with brickwork constructed onsite.

B.O.S.S. A1 is manufactured completely from A1 fire rated materials and is Document B:Fire Safety compliant.

B.O.S.S. A1 (Brick on Soffit System)

Designed to be bolted to WMS and Steel Lintels

Available in various bond patterns

Application

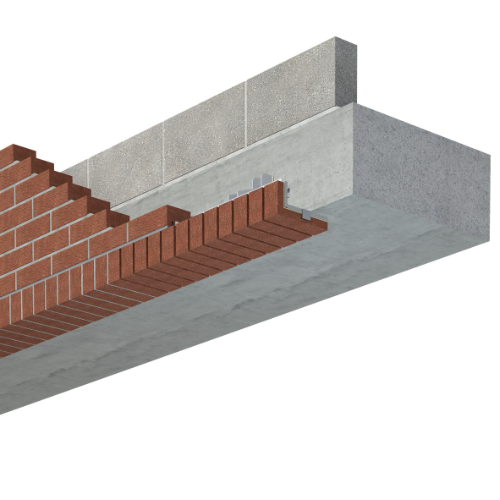

Brick soffits, deep reveals and flying beams have become increasingly popular design features with architects wanting to add depth and visual flare to a masonry façade. IG’s B.O.S.S. A1 provides a technically advanced solution that meets the required aesthetics, producing completely hidden structural steel work which gives the impression of unsupported brickwork.

The Skinners' School - IG Masonry Support Listing Image - Kilian O'Sullivan Photography

The Skinners School, Tunbridge Wells

Chobham Manor_IGMasonrySupport_ListingWebImage

Chobham Manor, London

Dawson Street, Dublin

SouthmerePhase1b_FeatureImage_IGMasonrySupport

Southmere Phase 1b, London

Certifications and Accreditations

A1 Fire Rated

The system is an ‘A1’ fire rated, BBA certified unit suitable for use on projects that require Document B compliance. By specifying B.O.S.S. A1, architects and specifiers can be assured that their brick soffit features meet current fire regulations regardless of the building’s height or purpose.

B.O.S.S. A1 Typical Design Solutions

B.O.S.S. A1 creates spectacular brick soffits with a wide range of bond patterns and soffit sizes achievable.

Typical design solutions include:

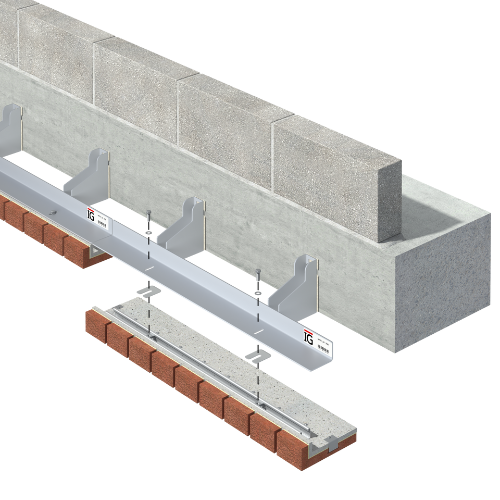

Header Bond
This solution is used to create header details at openings and reveals. The header bond detail on the B.O.S.S. A1 unit differentiates the soffit from the brickwork on the main façade.

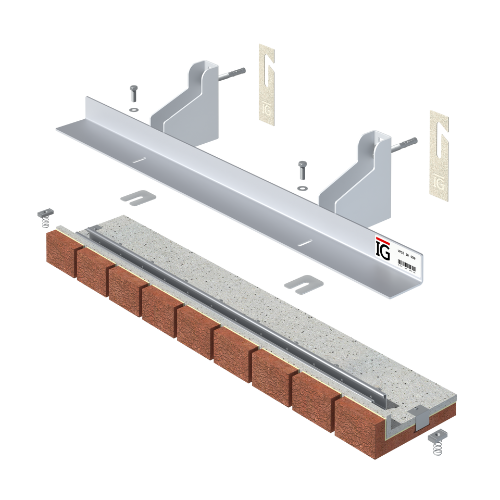

Stretcher Bond

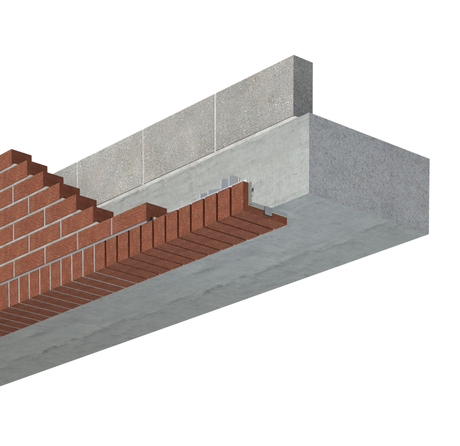

This solution is used to create deep soffits providing continuity with the brickwork on the main façade. Adjacent soffit units are designed to interlock, blending seamlessly together once the brickwork is pointed.

Half Lap Bond

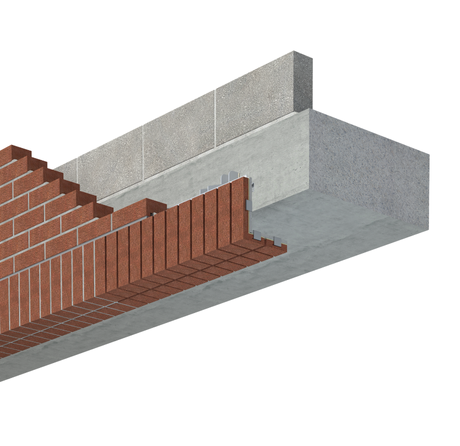

This solution is used to create half lap bond details at openings and reveals. The half lap bond detail on the B.O.S.S. A1 unit differentiates the soffit from the brickwork on the main façade.

Soldier Bond

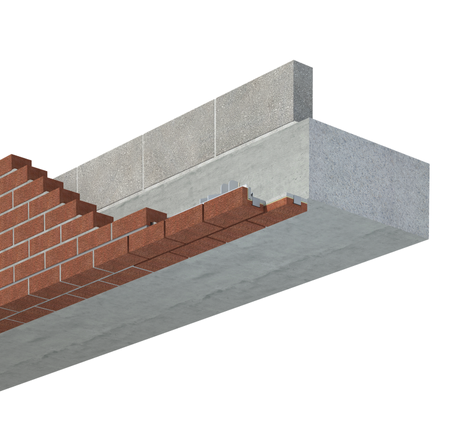

This solution is used to create soldier bond details at openings and reveals. The soldier bond detail on the B.O.S.S. A1 unit differentiates the soffit from the brickwork on the main façade.

Bespoke solutions including other brick arrangements are designed by our engineers to suit specific project requirements. Please contact our Technical Team for further information.

Header Bond

Half Lap Bond

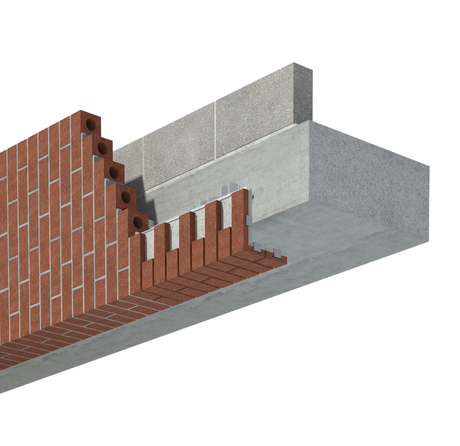

Stretcher Bond

Soldier Bond

Adjustability

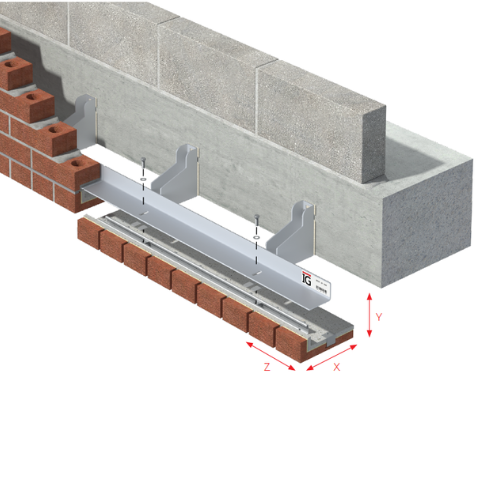

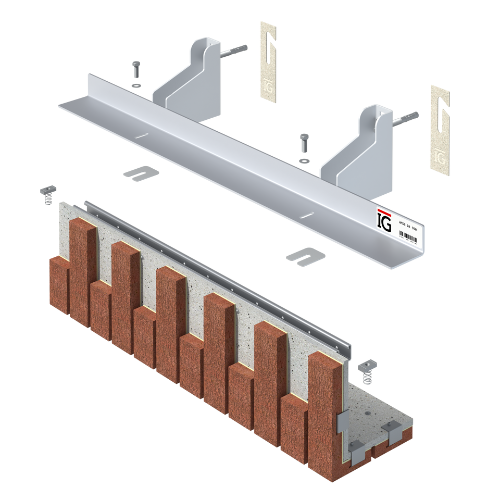

B.O.S.S. A1 is designed to be fitted to the underside of IG’s Welded Masonry Support (WMS) and steel lintels and offers adjustability on all three planes.

Horizontal adjustment (X)
Horizontal adjustment can be achieved by utilising the channel on the B.O.S.S. A1 unit and simply moving the unit from left to right.

Vertical adjustment (Y)
Vertical adjustment can be achieved by inserting stainless steel packers between the Welded Masonry Support or steel lintel system and the B.O.S.S. A1 unit under shelf angle.

Lateral adjustment (Z)
Lateral adjustment is achieved by utilising the slotted hole located on the shelf angle or lintel. Adjustment provided is +/-15mm. Once alignment and levels are correct, bolts should be torqued to 31.5 Nm as per Construction Issue Drawing provided by IG Masonry Support.

Adjustability Key

Product Design and Testing

B.O.S.S. has been independently tested by Third Party Organisations and Technical Approval Bodies to evaluate and validate the physical performance and long term durability of all components as well as ensure the products are fit for purpose and conform to regulations.

Key factors assessed by the British Board of Agrément (BBA), including properties in relation to fire, structural performance, thermal performance, condensation risk and durability can be found in Product Sheet 5: IG B.O.S.S A1.

Hygrothermally Tested

The B.O.S.S. A1 units were tested to demonstrate structural performance, following a period of accelerated weathering. The bond strength of the system was evaluated after being subjected to hygrothermal conditioning. The testing involved subjecting the B.O.S.S. A1 units to repeated heat/rain cycles, followed by repeated freeze/thaw cycles at a controlled temperature and humidity, all designed to simulate naturally occurring conditions. Following the weathering, pull-off tests were performed on the B.O.S.S. units.

Carbon Neutral Product

B.O.S.S. A1 has achieved Carbon Neutral Standard by offsetting carbon emissions through certified carbon offset projects.

carbon-neutral-product

Technical Data Sheet

Find out all technical data on IG Masonry Support’s B.O.S.S. A1 (Brick on Soffit System) in our comprehensive Technical Data Sheet.

Download Technical Data Sheet

Design Service & Support

IG Masonry Support’s designers and engineers provide a complete 2D CAD design and structural engineering service and will develop your concept into quality, cost effective prefabricated brick slip soffit solutions.

For more information please contact our Technical Team.

Installation of B.O.S.S. A1 (Brick on Soffit System)

Correct installation is essential for the success of your project. Therefore, we have made every effort to help you by creating an easy-to-use installation guide for B.O.S.S. A1.

B.O.S.S. A1 Brick on Soffit System (Bolting to WMS) Installation Guide (1,988kb)

Download

Should you have any technical questions prior to or during installation, please call 01283 200157 for friendly straightforward advice.

Specification Clauses

IG Masonry Support’s B.O.S.S. A1 (Brick on Soffit System) is designed and manufactured to suit each project. Various bond patterns and soffit sizes are achievable. Full specification data can be found on NBS Source.

Specify B.O.S.S. A1

Use the National Building Specification’s (NBS) platform to find, select, and incorporate our B.O.S.S. A1 product information into your next construction project’s specification.

Specify B.O.S.S. A1 >

Discuss Your Project

Contact our technical design team to collaborate or enquire about a project.

Meet the B.O.S.S. of Brick Soffit Systems

Design Service & Support

B.O.S.S. A1 is available in many profiles. Bespoke solutions including other brick arrangements can be designed to suit specific project requirements. Please contact our Technical Team for further guidance.

Discuss your project

Header Bond 65 X 215mm

Stretcher Bond 65 x 327mm

Half Lap Bond 215 x 215mm

Key Benefits of B.O.S.S. A1

A1 fire rated
Hygrothermally tested
Mechanically fixed brick slips
Carbon neutral product
Onsite adjustability on three planes
Various bond patterns and soffit sizes available
Blends seamlessly with surrounding brickwork
Suitable for all heights and types of buildings
EPD: BRE Global Verified

Request CPD Presentation

Gain your CPD points by requesting a Continuous Professional Development presentation on IG Masonry Support solutions.

Request CPD
