Brick Panel System

The use of brick soffits and deep reveals as design features has been on the rise, as architects aim to add depth and visual appeal to masonry veneer. IG offers a technically advanced solution with the Brick Panel System, which meets the required aesthetics.

Use
IG’s Brick Panel System is satisfactory for use on external and internal soffits of buildings.

Substructure
IG’s Brick Panel System can be fixed to materials such as timber, concrete and steel. The substructure must be designed to suit the buildings performance requirements by an appropriately qualified design engineer on a project specific basis.

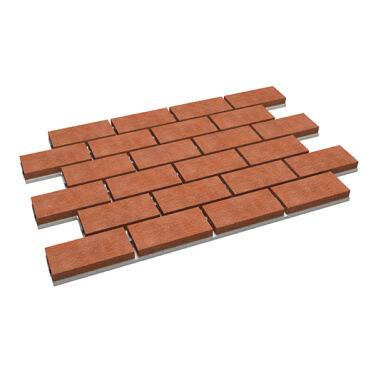

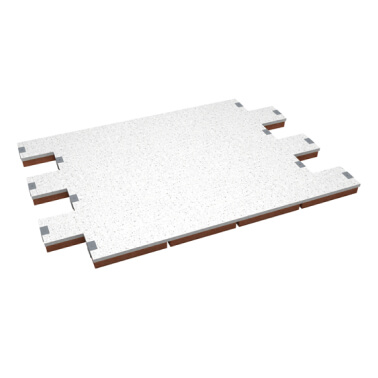

Interlocking system
The interlocking panel system is quick and easy to install and eliminates the need for any brick cutting or bonding of brick slips onsite. The individual interlocking panels are
fixed to the substructure with recommended fixings within the mortar joints and hidden once pointed.

Bond patterns
Each system is designed by our engineers to suit specific project requirements and various soffit depths and bond patterns can be achieved.

The interlocking panel system is quick and easy to install and eliminates the need for any brick cutting or bonding of brick slips onsite. The individual interlinking panels are fixed to the timber structure with screws. The stainless steel screws are fixed within the mortar joints and hidden once pointed.

IG’s Brick Panel System has been independently tested by Third Party Organisations and Technical Approval Bodies to evaluate and validate the physical performance and long
term durability of all components as well as ensure the products are fit for purpose and conform to regulations.

Key factors assessed include:

• Bond strength after accelerated ageing
• Pull-out resistance of fixings
• Pull-through resistance of fixings
• Integrity of the bond at maximum design deflection.

Correct installation is essential for the success of your project. An easy-to-use installation guide for our Brick Panel System will be available soon.

Should you have any technical questions prior to or during installation, please call +1 302 303 5410 for friendly, straightforward advice.
