Brick Slip Arches

Used to achieve bespoke arches with brick soffits.

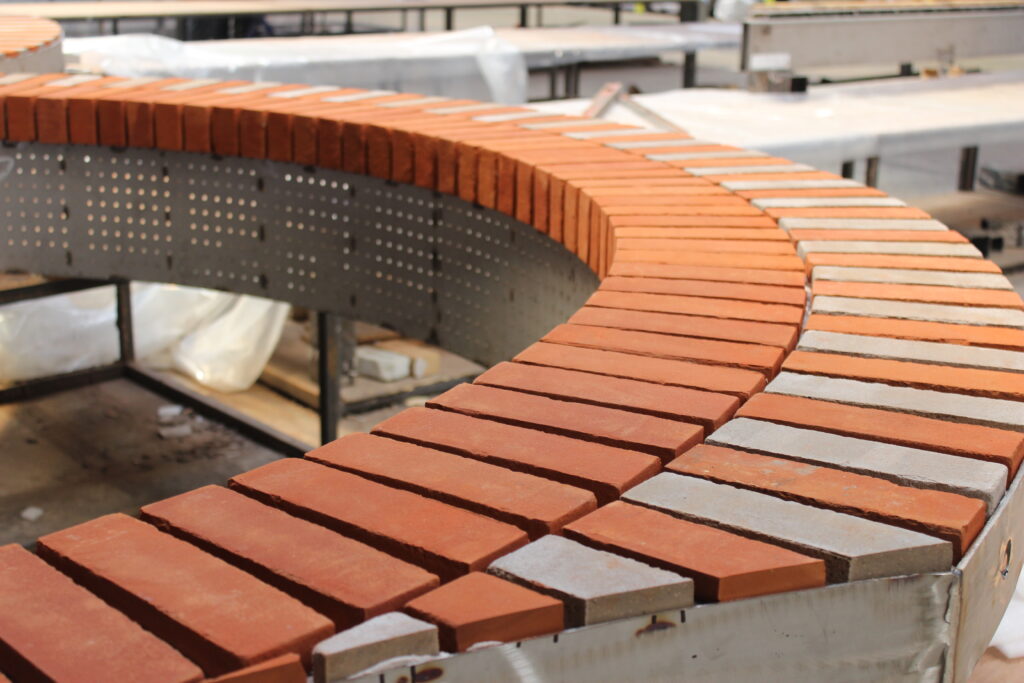

IG Brick Slip Feature Arch Typical Design Solutions – IG Brick Slip Feature Arches are designed to create visually stunning brick soffit arches that are customized according to the project’s unique size, shape, and aesthetic needs. These units can be tailored to fit a variety of profiles with eight examples provided below.

Full Brick Soffit Semi Circular Arch

IG’s Semi-Circular Brick Slip Feature Arch provides a seamless return of brickwork under the lintel so that no steelwork is visible on the outer leaf. This design can include a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Full Brick Soffit Segmental Arch

An IG Segmental Brick Slip Feature Arch allows for the return of brickwork under the lintel’s soffit, ensuring that no steelwork is visible on the outer leaf. This design can feature a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Flat Gauge Arch

IG’s Flat Gauge Brick Slip Feature Arch enables the brickwork to return under the lintel’s soffit without any visible steelwork on the outer leaf. This design can include a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Segmental Arch

IG’s Segmental Brick Slip Feature Arch enables the brickwork to return under the lintel’s soffit without any visible steelwork on the outer leaf. This design can include a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Gothic Arch

An IG Gothic Brick Slip Feature Arch allows for the return of brickwork under the lintel’s soffit without any visible steelwork on the outer leaf. This design can feature a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Parabolic Arch

IG’s Parabolic Brick Slip Feature Arch allows for the brickwork to return under the lintel’s soffit without any visible steelwork on the outer leaf. This design can include a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Bullseye Arch

An IG Bullseye Brick Slip Feature Arch enables the brickwork to return under the lintel’s soffit without any visible steelwork on the outer leaf. This design can include a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Apex Arch

IG’s Apex Brick Slip Feature Arch allows for the return of brickwork under the lintel’s soffit without any visible steelwork on the outer leaf. This design can feature a soldier course of 1 brick, 1 ½ bricks, or 2 bricks.

Correct installation is essential for the success of your project. Therefore, we have made every effort to help you by creating an easy-to-use installation guide for IG Brick Slip Feature Arches.

Should you have any technical questions prior to or during installation, please call +44 (0)1283 200157 for friendly straightforward advice.
